This package is for attic (or certain garage) fan installations only.

The KTA 1.0 is the CLASS II low voltage fan from PDS. The KTA saves time. The power supply box with integral system indicator can be mounted on any wall inside the home where an outlet can be found. From here, the two-conductor cable can easily be routed up to 100 feet away to the fan (even outside). Due to the power being less than 50 volts, most jurisdictions do not require electrical permits. The easy-to-read, panel mounted, needle indicator system senses the airflow of the fan, giving an easy to see reading. If you are a homeowner installing your own system, you will appreciate the simplicity of installing the KTA system. If you are a professional installer, you will appreciate the speed of installation as well as positive comments from your clients.

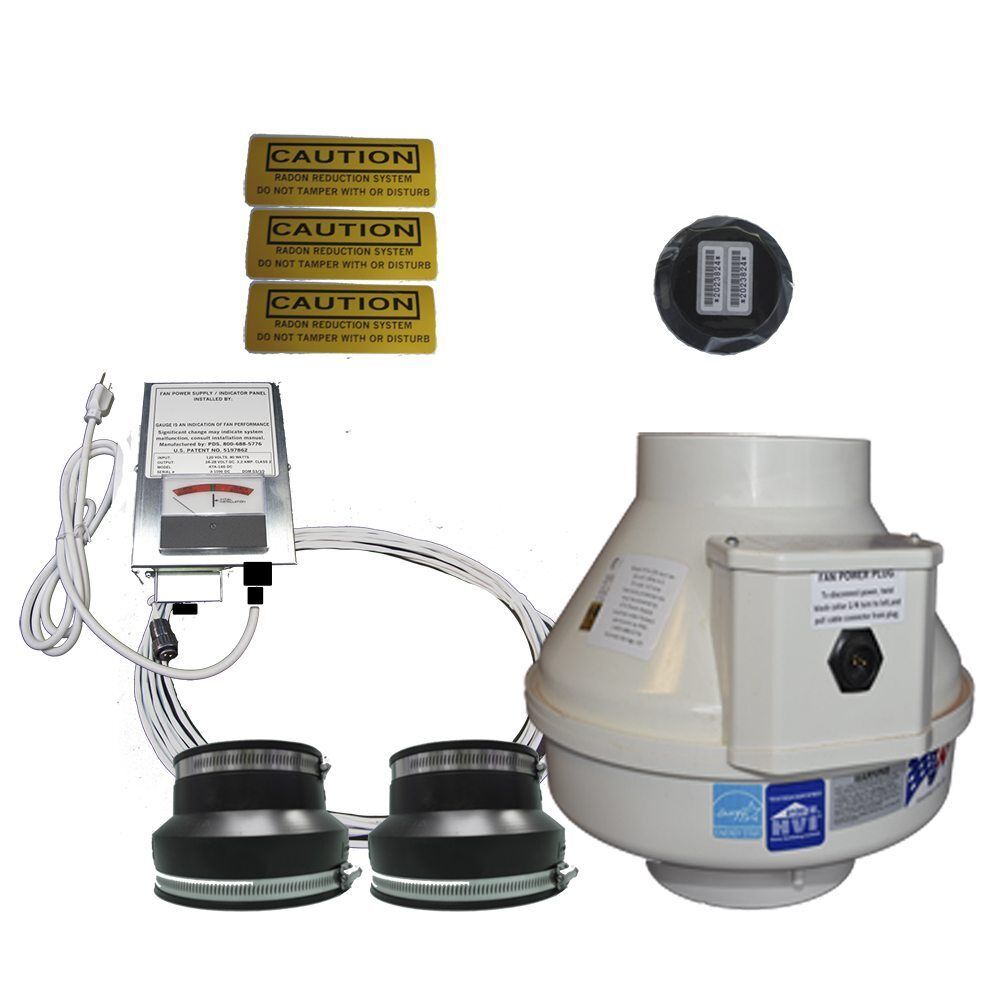

• 24 volt Class 2 power limiting power supply.
• KTA 150 fan (See Fan Characteristics for Fantech FR-150).
• Special Class 2 cable available in 25 and 50 ft. lengths. Call about longer lengths.
• System operation/failure indicator as required by EPA Mitigation Standards.
• Triple fail-safe electrical disconnect system at both fan and power supply.
• Five year limited warranty on fan and meter indicator box
• Easy to interpret system indicator for homeowner.
• KTA Meter Indicator Boxes must always be installed inside the home.
