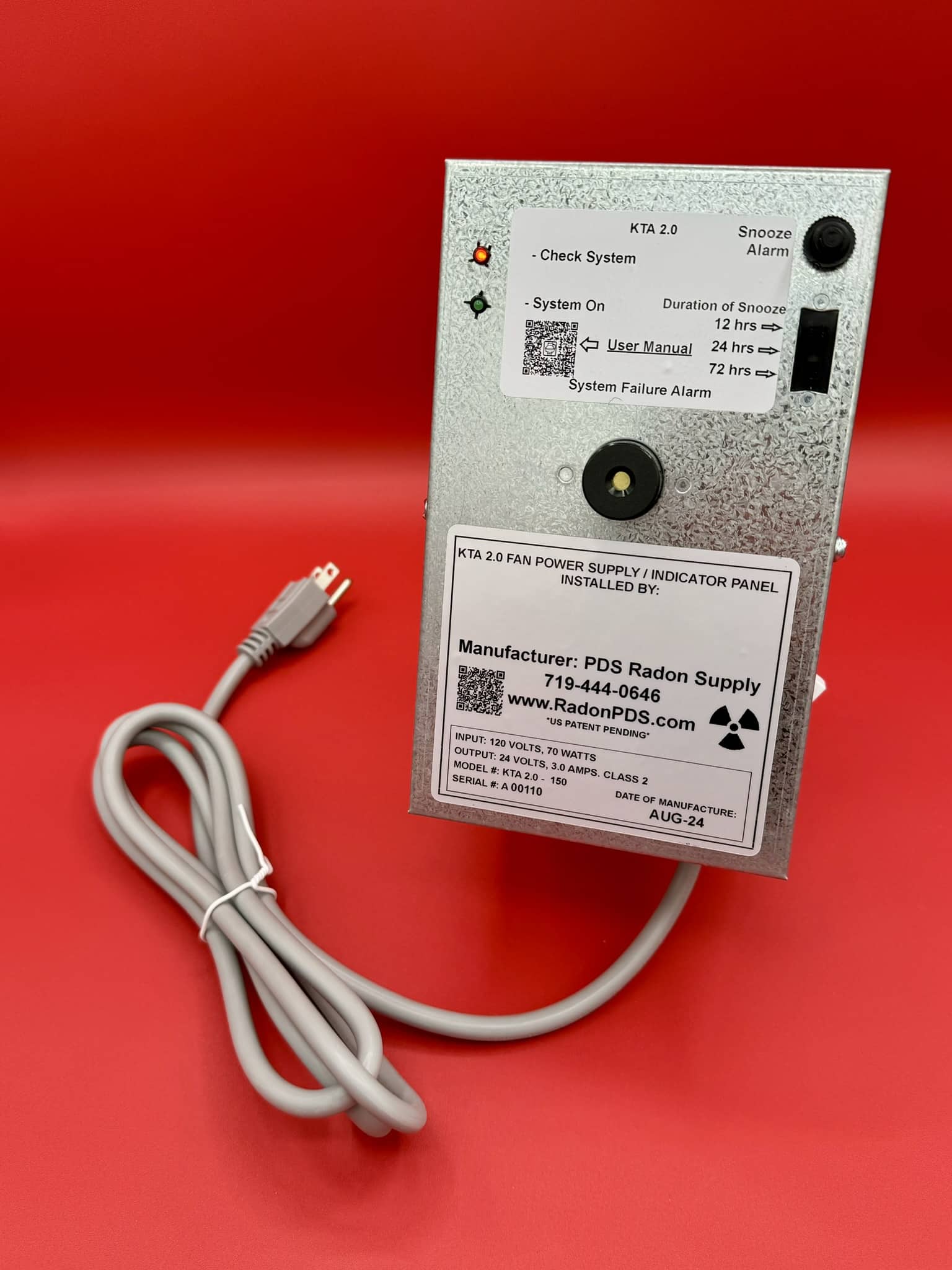

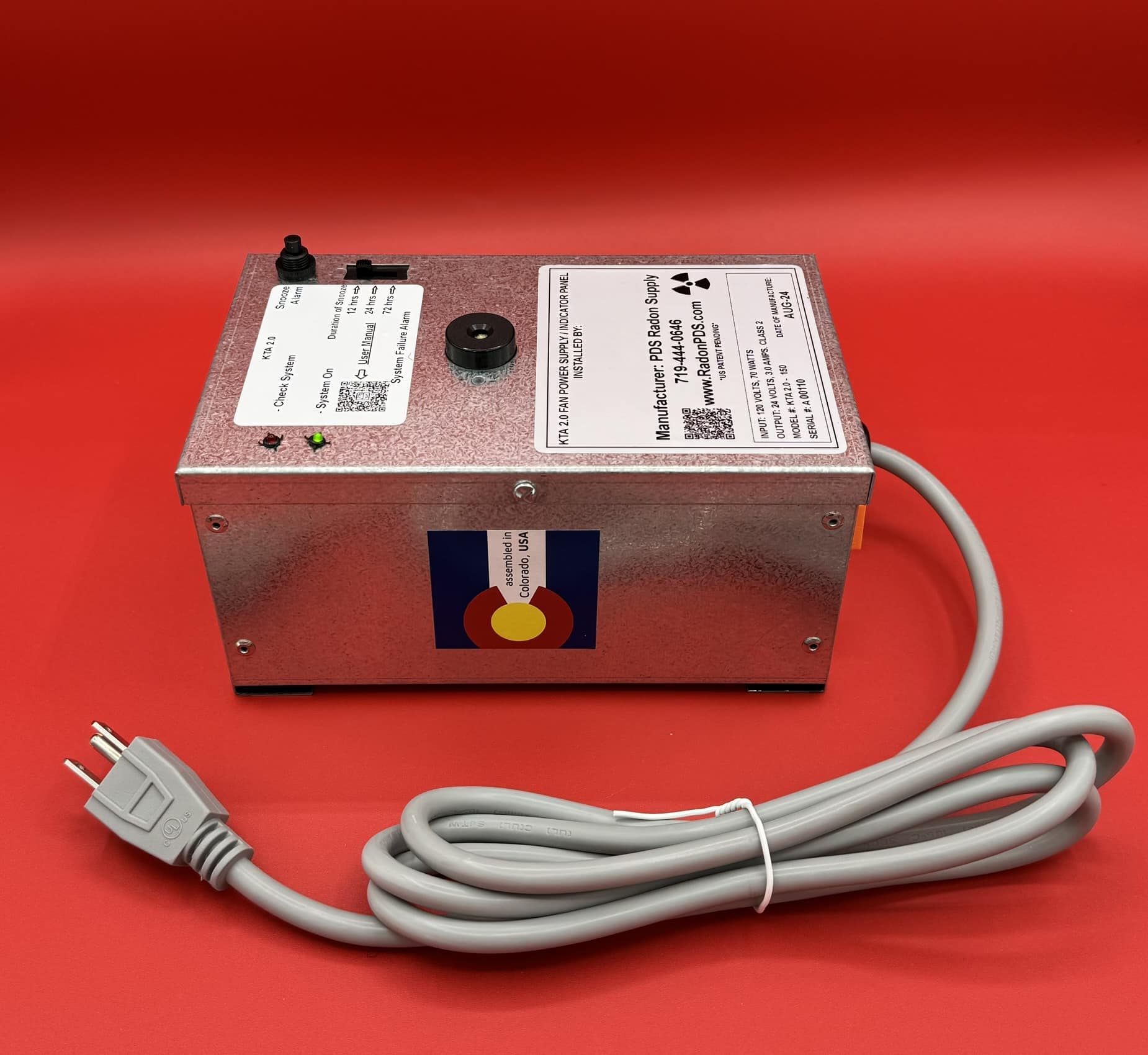

The power supply box with LED indicators and audible alarm can be mounted on any wall inside the home where a GFCI outlet can be found. From here, the two-conductor cable can easily be routed up to 100 feet away to the fan (even outside). This power supply is backwards compatible with KTA 1.0 systems—same fan, same cord used. Due to the power being less than 50 volts, jurisdictions following US electrical code rarely require electrical permits–even when penetrating an exterior wall. The easy-to-read LED indicator meets ANSI/AARST Standard SGM-SF-2023. The display gives an easy to see indication of current fan performance and the audible alarm alerts the homeowner when a malfunction may be occurring. Best placements are in garages and mechanical rooms (cord can penetrate any wall–except a firewall–without added conduit between fan and box).
Full system with fan and cord HERE
Normal operating temperature of KTA box is over 100 degrees Fahrenheit. KTA box has redundant thermal fail-safes in case of overheating. Box can be hot to the touch, and should be placed indoors free from any obstructions.

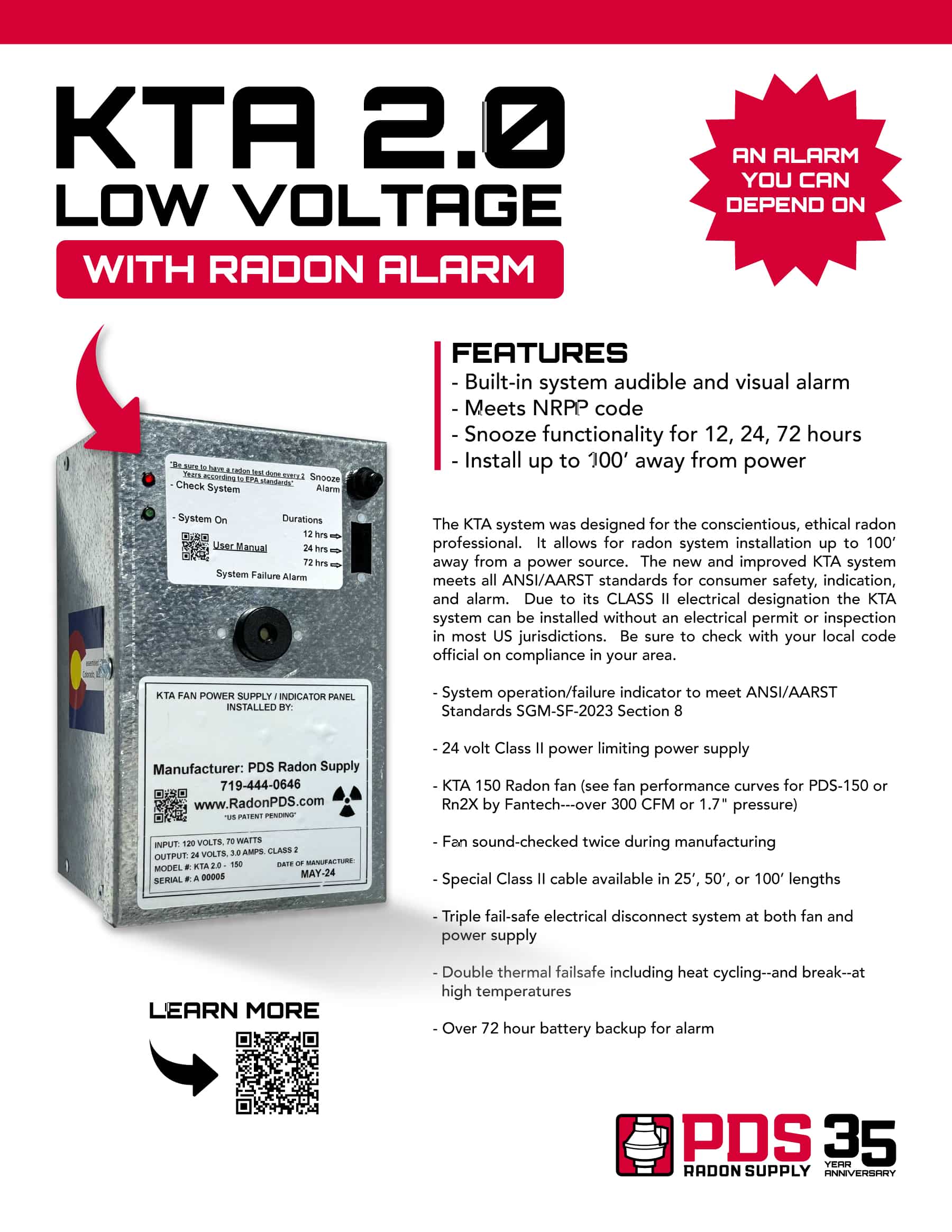

24 volt Class 2 power limiting power supply with ANSI AARST audible visual alarm
Five year limited warranty terms here
This KTA 2.0 replacement power/alarm assembly fits 25′ and 50′ KTA low-voltage systems (100′ systems require a special power supply call to order) & only works with a KTA 150 low voltage fan.
Cut your plastic use! Box housing made of USA Steel! Assembled by hand in Colorado, USA!
